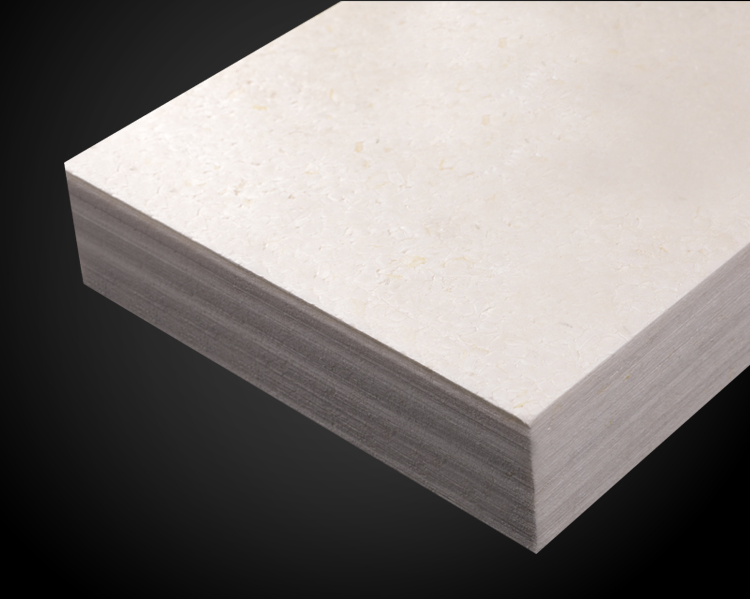

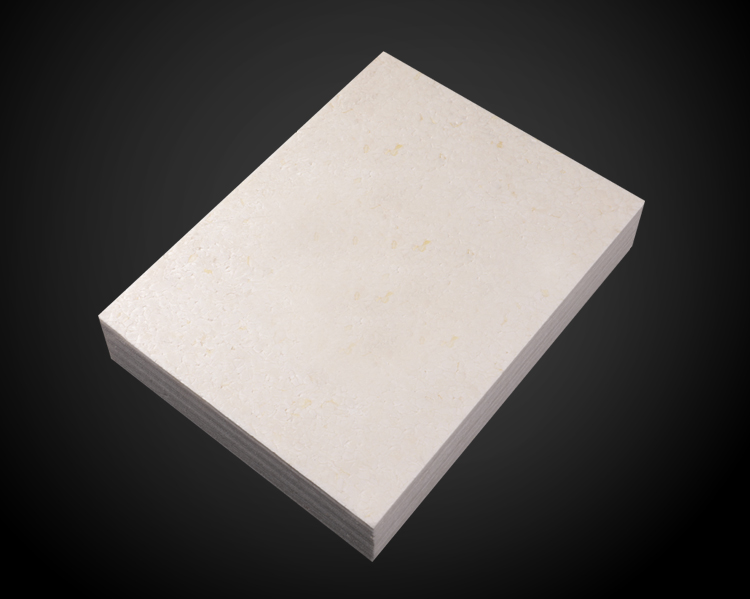

Complex geometries which cannot be obtained by CNC can be foamed in situ now. Cascell® MF foam core has been specifically designed for complex geometries parts, it can dramatically increase the use ratio of the foam and reduce the cycle time. Complex 3D-foam core parts can be obtained directly from the in-mold foaming process.
MECHANICAL PERFORMANCE
|
Type |
Test Method |
Units |
CASCELL® 75 MF |
CASCELL® 110 MF |
CASCELL® 150 MF |
|
Density |
ISO845 |
Kg/m3 |
75 |
110 |
150 |
|
Compressive Strength |
ISO844 |
MPa |
0.8 |
1.8 |
3.0 |
|
Tensile Strength |
ASTM D638 |
MPa |
0.8 |
1.5 |
2.0 |
|
Elastic Modulus |
ASTM D638 |
MPa |
80 |
140 |
210 |
|
Elongation At break |
ASTM D638 |
% |
1.3 |
1.2 |
1.3 |
|
Flexural Strength |
ASTM D790 |
MPa |
1.0 |
2.3 |
3.0 |
|
Shear Strength |
ASTM C273 |
MPa |
0.5 |
1.2 |
1.7 |
|
Shear Modulus |
ASTM C273 |
MPa |
30 |
40 |
65 |
|
Compressive Creep |
GB/T 15048 |
% |
≦2.0 |
||
|
Temperature Resistance |
DIN 53424 |
℃ |
≧200 |
||
Compressive creep testing conditions：
Cascell® 75MF, 130℃/0.3MPa/2h
Cascell® 110MF, 150℃/0.3MPa/2h
Cascell® 150MF, 180℃/0.3MPa/2h
Note: Technical data of our products are typical values for the nominal density.
